Product Overview

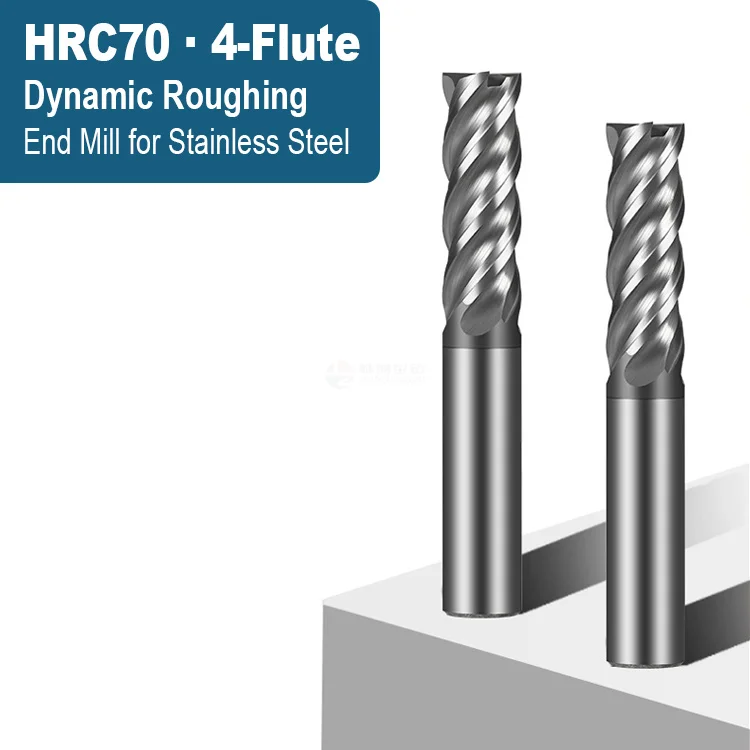

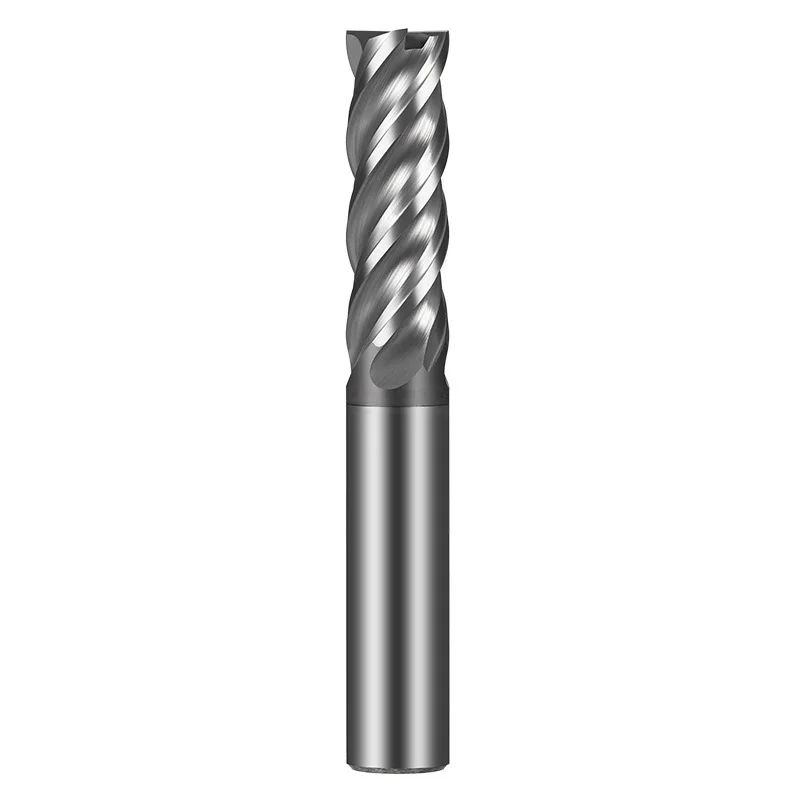

This 4-flute HRC70 solid carbide end mill is designed for milling stainless steel and other difficult-to-machine austenitic materials. The ultra-fine grain carbide substrate is finished with a multi-layer coating that resists heat and abrasion, keeping the cutting edge sharp through long production runs. Ground peripheries and a controlled core diameter give stable, chatter-free cutting in side milling, slotting, profiling and finishing. The size chart below lists cutting diameter, depth of cut, shank diameter and overall length for every standard size; non-standard lengths and coatings can be made to order.
Specifications
| Model | DC(cm) | APMX(cm) | DON(cm) | LF(cm) |
|---|---|---|---|---|
| Ф1*3*4*50L | 1 | 3 | 4 | 50 |
| Ф1.5*5*4*50L | 1.5 | 5 | 4 | 50 |
| Ф2*6*4*50L | 2 | 6 | 4 | 50 |
| Ф2.5*8*4*50L | 2.5 | 8 | 4 | 50 |
| Ф3*9*3*50L | 3 | 9 | 3 | 50 |
| Ф3*9*4*50L | 3 | 9 | 4 | 50 |
| Ф3.5*11*4*50L | 3.5 | 11 | 4 | 50 |
| Ф4*12*4*50L | 4 | 12 | 4 | 50 |
| Ф5*13*5*50L | 5 | 13 | 5 | 50 |
| Ф5*13*6*50L | 5 | 13 | 6 | 50 |
| Ф6*15*6*50L | 6 | 15 | 6 | 50 |
| Ф6*18*6*50L | 6 | 18 | 6 | 50 |
| Ф7*20*8*60L | 7 | 20 | 8 | 60 |
| Ф8*20*8*60L | 8 | 20 | 8 | 60 |
| Ф8*24*8*60L | 8 | 24 | 8 | 60 |
| Ф3*12*3*75L | 3 | 12 | 3 | 75 |
| Ф4*16*4*75L | 4 | 16 | 4 | 75 |
| Ф5*18*5*75L | 5 | 18 | 5 | 75 |
| Ф6*24*6*75L | 6 | 24 | 6 | 75 |
| Ф8*25*8*75L | 8 | 25 | 8 | 75 |
| Ф9*25*10*75L | 9 | 25 | 10 | 75 |
| Ф10*25*10*75L | 10 | 25 | 10 | 75 |
| Ф10*30*10*75L | 10 | 30 | 10 | 75 |
| Ф11*30*12*75L | 11 | 30 | 12 | 75 |
| Ф12*30*12*75L | 12 | 30 | 12 | 75 |
| Ф12*36*12*75L | 12 | 36 | 12 | 75 |
| Ф3*12*3*100L | 3 | 12 | 3 | 100 |
| Ф4*20*4*100L | 4 | 20 | 4 | 100 |
| Ф5*30*5*100L | 5 | 30 | 5 | 100 |
| Ф6*30*6*100L | 6 | 30 | 6 | 100 |
| Ф8*35*8*100L | 8 | 35 | 8 | 100 |
| Ф10*40*10*100L | 10 | 40 | 10 | 100 |
| Ф10*50*10*100L | 10 | 50 | 10 | 100 |
| Ф12*45*12*100L | 12 | 45 | 12 | 100 |
| Ф12*50*12*100L | 12 | 50 | 12 | 100 |
| Ф14*45*14*100L | 14 | 45 | 14 | 100 |
| Ф16*45*16*100L | 16 | 45 | 16 | 100 |
| Ф18*45*18*100L | 18 | 45 | 18 | 100 |
| Ф20*45*20*100L | 20 | 45 | 20 | 100 |
| Ф6*45*6*150L | 6 | 45 | 6 | 150 |
| Ф8*50*8*150L | 8 | 50 | 8 | 150 |
| Ф10*55*10*150L | 10 | 55 | 10 | 150 |
| Ф12*55*12*150L | 12 | 55 | 12 | 150 |
| Ф14*70*14*150L | 14 | 70 | 14 | 150 |
| Ф16*70*16*150L | 16 | 70 | 16 | 150 |
| Ф18*70*18*150L | 18 | 70 | 18 | 150 |
| Ф20*70*20*150L | 20 | 70 | 20 | 150 |
Applications
- High-feed roughing of stainless steel parts
- Dynamic milling with light radial engagement
- Finishing of flanges, pump and valve bodies
- Chatter-free milling on less rigid setups
Features
- Ultra-fine grain carbide substrate for high transverse rupture strength
- Multi-layer coating with high hot hardness and oxidation resistance

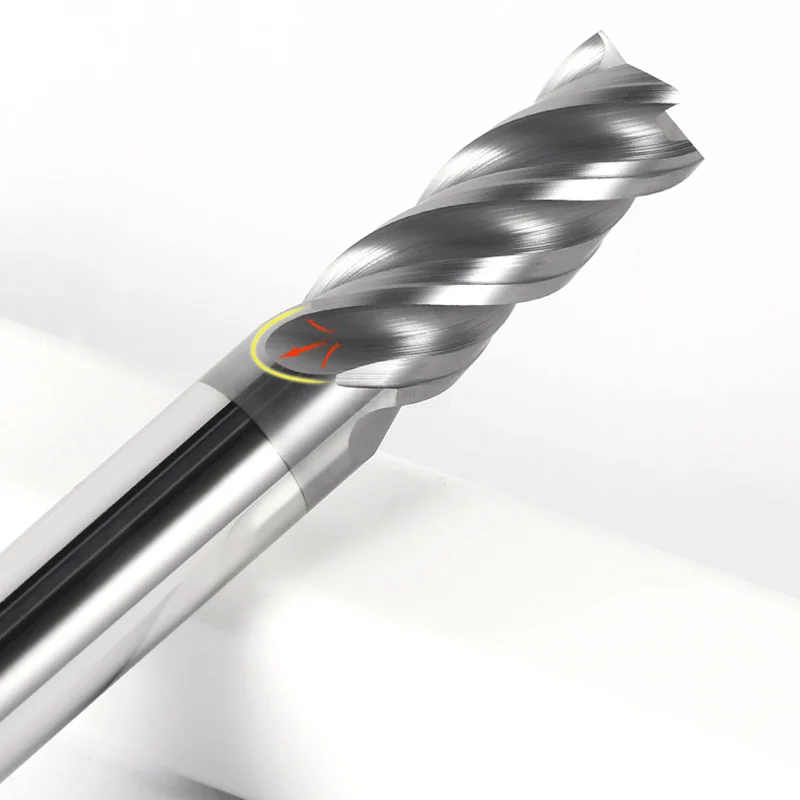

- Ground periphery and sharp cutting edge for dimensional accuracy
- Polished flute surface reduces built-up edge and improves chip flow
- Full size range with reduced-neck options for deep-reach milling
Ordering & Support
Minimum order quantity is 10 pieces, and standard sizes ship in 5–8 working days. We can supply inserts with your own laser marking, selected coating and neutral packaging, and we are glad to send samples for cutting trials on your material before you commit to a batch. Send us your workpiece material, machine and cutting parameters and our engineers will recommend the most suitable grade and geometry.
Want a price for undefined? MOQ 10 pcs · FOB quote within 24 hours · no online payment required.
Request a Quote — undefined
Tell us the quantity and destination port in the Details box. We reply within 24 hours with FOB price, MOQ and lead time. No online payment — this is a quote request, not an order.
Prefer email? merlinlee629@gmail.com — or use the form above and we will get back to you directly.
| Model | HRC70 4-Flute Dynamic Series |
|---|---|
| Workpiece Material | Stainless steel |
| Workpiece Hardness | HRC70 max |
| Flutes | 4 |
| Coating | AlTiN multi-layer |
