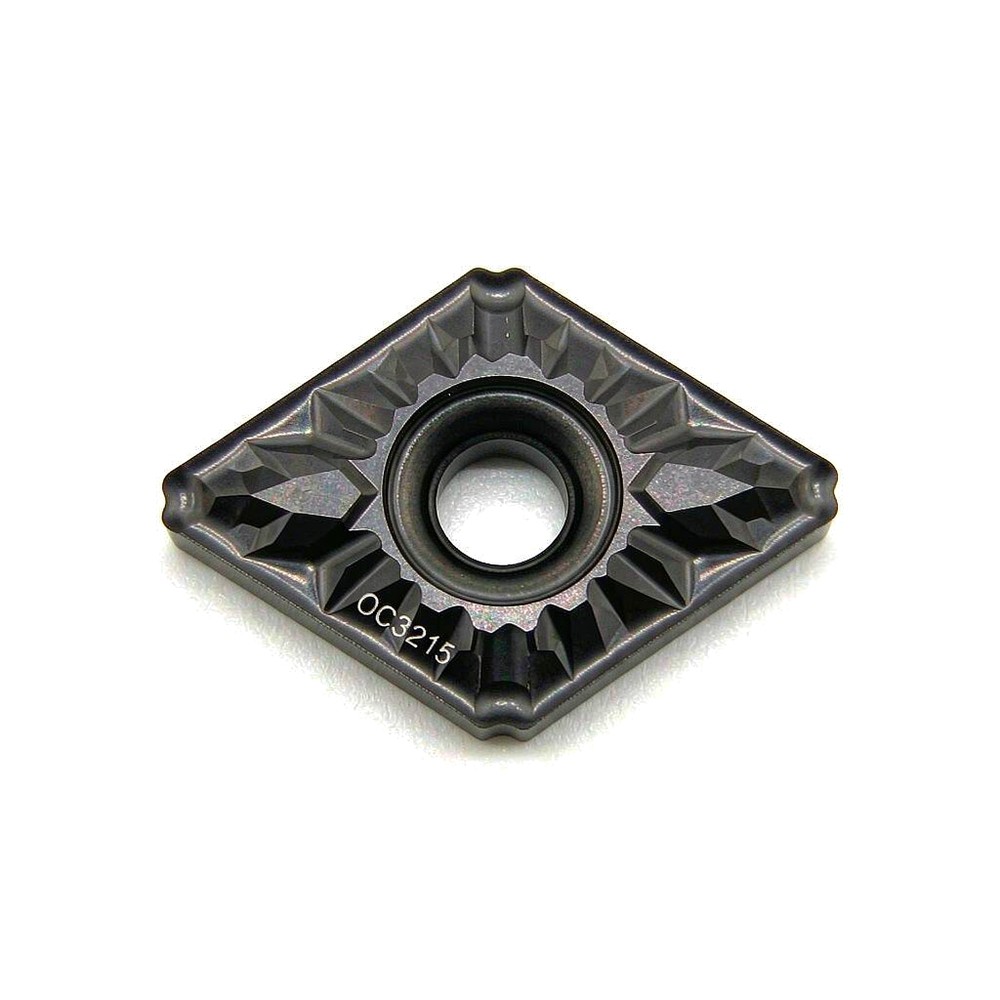

OKE OC3215 — CVD Coated Carbide Turning Insert for Cast Iron
The OC3215 is a CVD-coated carbide grade engineered for semi-finish and rough turning of cast iron (ISO application group K). Its MT-TiCN + Al₂O₃ coating delivers 1580 HV surface hardness, outstanding crater-wear resistance and stable performance at high cutting speeds on grey cast iron and ductile iron.
Grade specification
| Grade | OC3215 |
| Coating | CVD — MT-TiCN + Al2O3 (black) |
| Hardness | 1580 HV |
| ISO application | K — cast iron, semi-finish / rough turning |
| Workpiece materials | Grey cast iron (GG), ductile iron (GGG), vermicular cast iron, compacted graphite iron |
Insert designation
Supplied as CNMG 120408 (ISO 1832): 80° rhombic, IC 12.7 mm, thickness 4.76 mm, corner radius 0.8 mm, with 40°–60° countersunk center hole and double-sided 3D chipbreaker. Other sizes and chipbreakers (OTR roughing / OTM medium / GM finishing) are available on request.
- Four usable cutting edges per insert — lower cost per edge

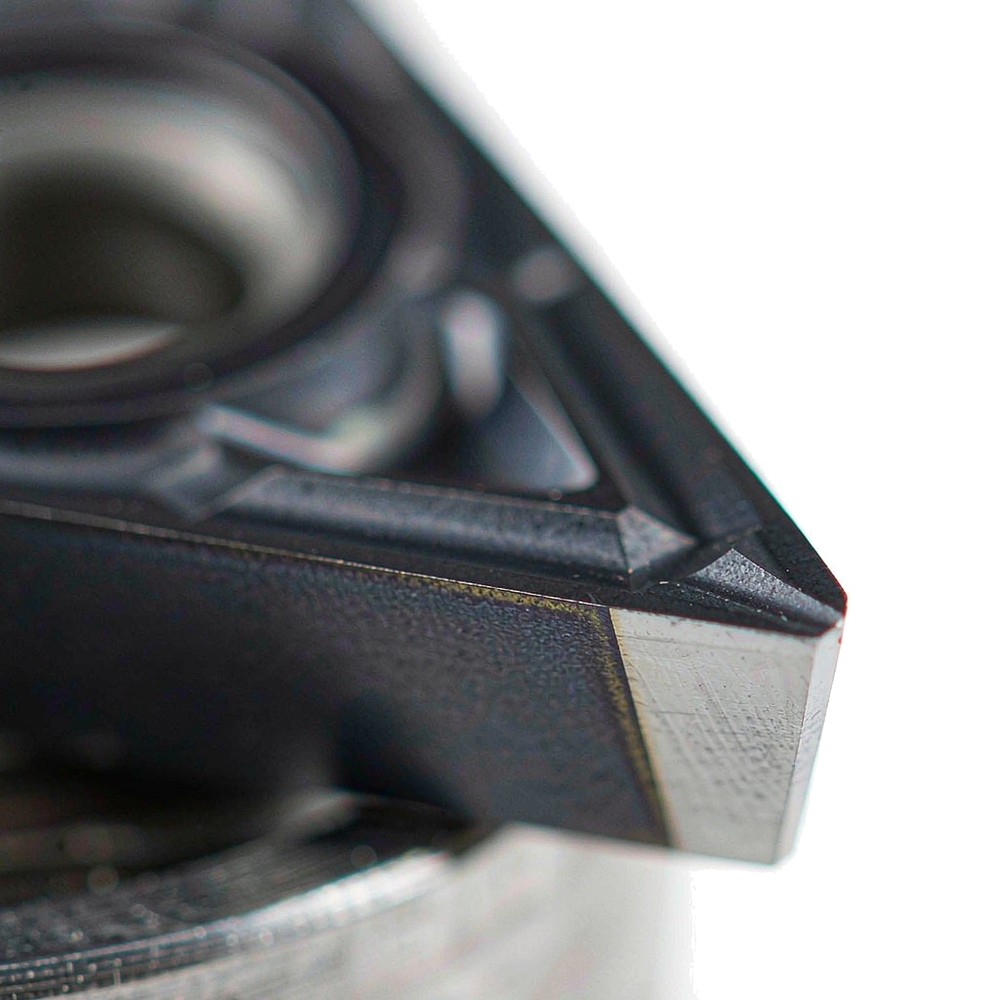

- Reinforced edge with -OTM chipbreaker: reliable chip control on interrupted cuts
- Typical cutting speed Vc 200–400 m/min on grey cast iron
- Suitable workpieces: brake discs, engine blocks, gear housings, machine-tool castings
Why source from us
MOQ from 100 pcs. Full specifications and price quotation within 24 hours — send us your workpiece material and machining process, and our engineers will recommend the right grade and geometry.
