Product Overview

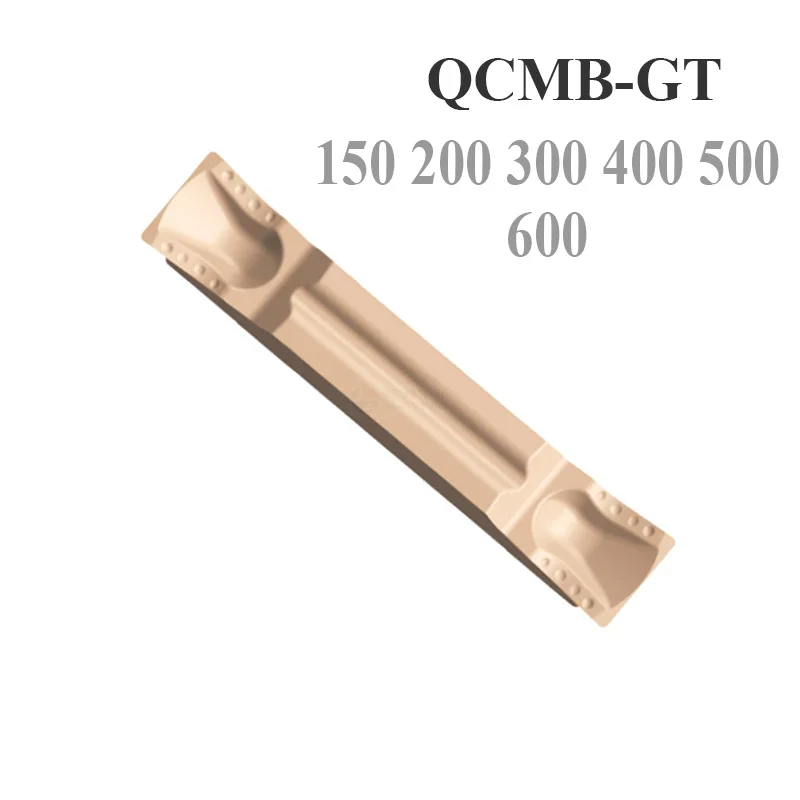

The QCMB1502-GT is a carbide parting and grooving insert with a dedicated chipformer that keeps chips narrow and curls them away from the groove, reducing the risk of jamming in deep parting cuts. Ground periphery accuracy means the insert seats quickly and runs true in standard QCMB-style parting bars. It is well suited to parting-off, necking and face grooving of steel, stainless steel and similar materials on CNC lathes.

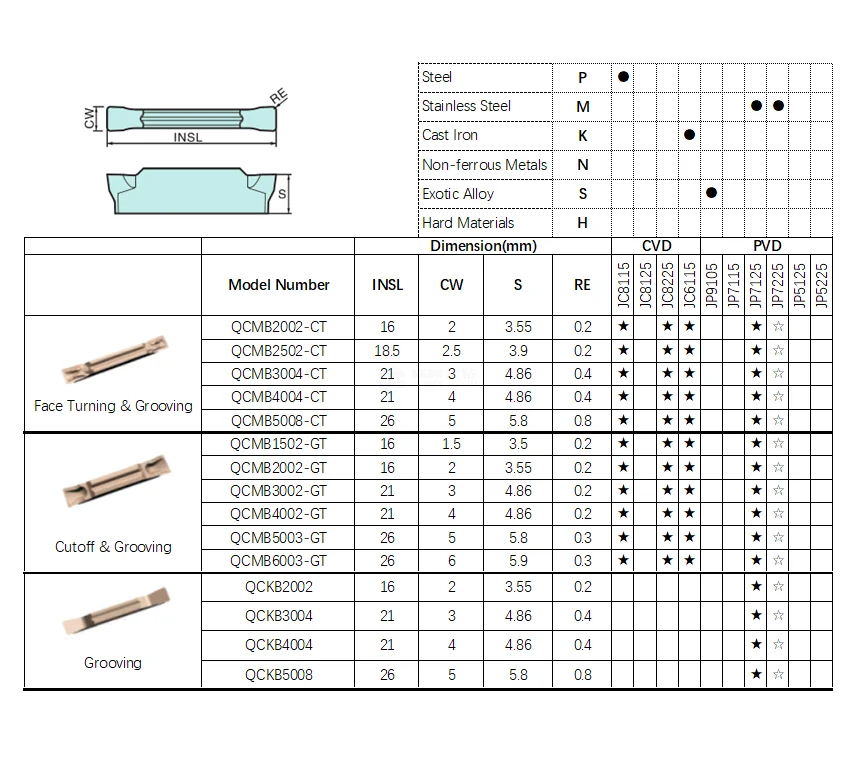

Specifications
| Cutoff and Grooving | Dimension(mm) | ||||||
|---|---|---|---|---|---|---|---|
 |
Model Number | INSL | CW | S | RE | CVD | PVD |
| QCMB1502-GT | 16 | 1.5 | 3.5 | 0.2 | Steel: JC8115 JC8125 Cast Iron: JC6115 |
Stainless: JP7125 JP7225 |
|
| QCMB2002-GT | 16 | 2 | 3.55 | 0.2 | |||
| QCMB3002-GT | 21 | 3 | 4.86 | 0.2 | |||
| QCMB4002-GT | 21 | 4 | 4.86 | 0.2 | |||
| QCMB5003-GT | 26 | 5 | 5.8 | 0.3 | |||
| QCMB6003-GT | 26 | 6 | 5.9 | 0.3 | |||
Applications
- Parting-off bar stock and tube on CNC lathes
- Necking and relief grooves before threading
- Face grooving operations
- Production parting where stable chip control matters
Features
- Tough carbide substrate balances wear resistance and edge strength
- Advanced CVD / PVD coating with hard, smooth surface
- Precision-ground periphery for accurate, repeatable seating
- Designed chipbreaker for clean chip control
- OEM marking, coating and packaging on request
Ordering & Support
Minimum order quantity is 10 pieces, and standard sizes ship in 5–8 working days. We can supply inserts with your own laser marking, selected coating and neutral packaging, and we are glad to send samples for cutting trials on your material before you commit to a batch. Send us your workpiece material, machine and cutting parameters and our engineers will recommend the most suitable grade and geometry.
Want a price for QCMB1502-GT? MOQ 10 pcs · FOB quote within 24 hours · no online payment required.
Request a Quote — QCMB1502-GT
Tell us the quantity and destination port in the Details box. We reply within 24 hours with FOB price, MOQ and lead time. No online payment — this is a quote request, not an order.
Prefer email? merlinlee629@gmail.com — or use the form above and we will get back to you directly.
| Model | QCMB1502-GT |
|---|---|
| Workpiece Material | Steel, Stainless |
| Cutting Width | 2.0 mm |
| Coating | PVD / CVD |
